Rivet Nut Installation Tools

Rivet Threaded Nutsert Installation Tools, ISO 9001:2015 Certified, CE Compliant

Thread Conversion Tables - Metric to Imperial/Unified

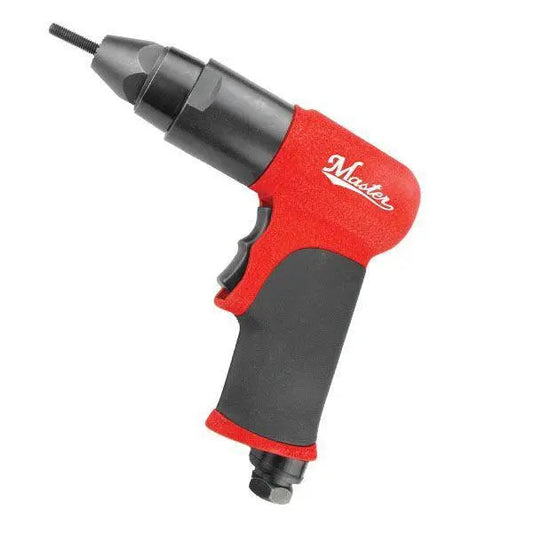

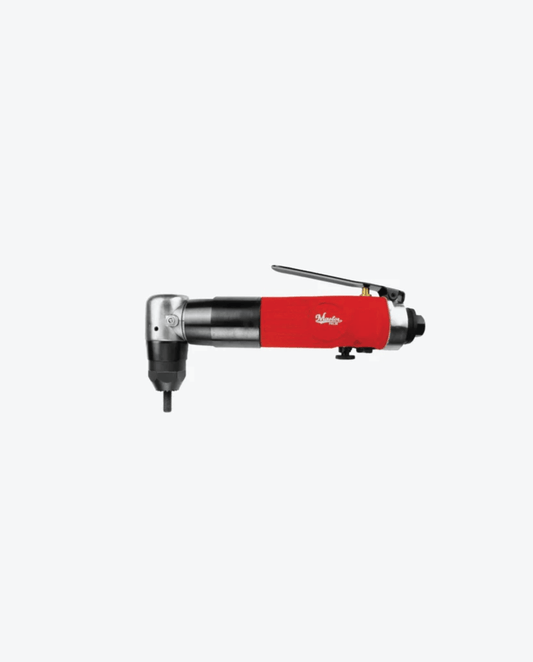

Industrial grade rivet nut installation tools allow tool users to install threaded nutserts easily without using too much strength or other tools. Just cling onto it and press, the tool will put the threaded nut and set for complete installation.  All rivet nut installation tools are ISO 9001:2008 certified with CE bookmarked. Industrial pneumatic rivet nut installation, the nut pull setter, operates on compressed air. Each tool comes with three years limited repair warranty. Choice of right angle or pistol grip / hand grip models or both.

*Similar Size Chart. For Metric nutsert, please order the metric model, for UNC, please purchase the UNC model.

Metric Coarse Metric Fine BSF/BSW UNC UNF
M5 x 0.8 - - 10-24 10-32
M6 x 1 M6 x 0.75 1/4" 1/4-20 1/4-28
M8 x 1.25 M8 x 1 5/16" 5/16-18 5/16-24
M10 x 1.5 M10 x 1.25 3/8"
 3/8-16 3/8-24
M12 x 1.75 M12 x 1.25 1/2" 1/2-13 1/2-20
M14 x 2 M14 x 1.5 9/16" 9/16-12 9/16-18
M16 x 2 M16 x 1.5 5/8" 5/8-11 5/8-18
M20 x 2.5 M20 x 1.5 3/4" 3/4-10 3/4-16
